Gradall Fire Suppression Machines Available

News Image

OTHER GRADALL NEWS STORIES

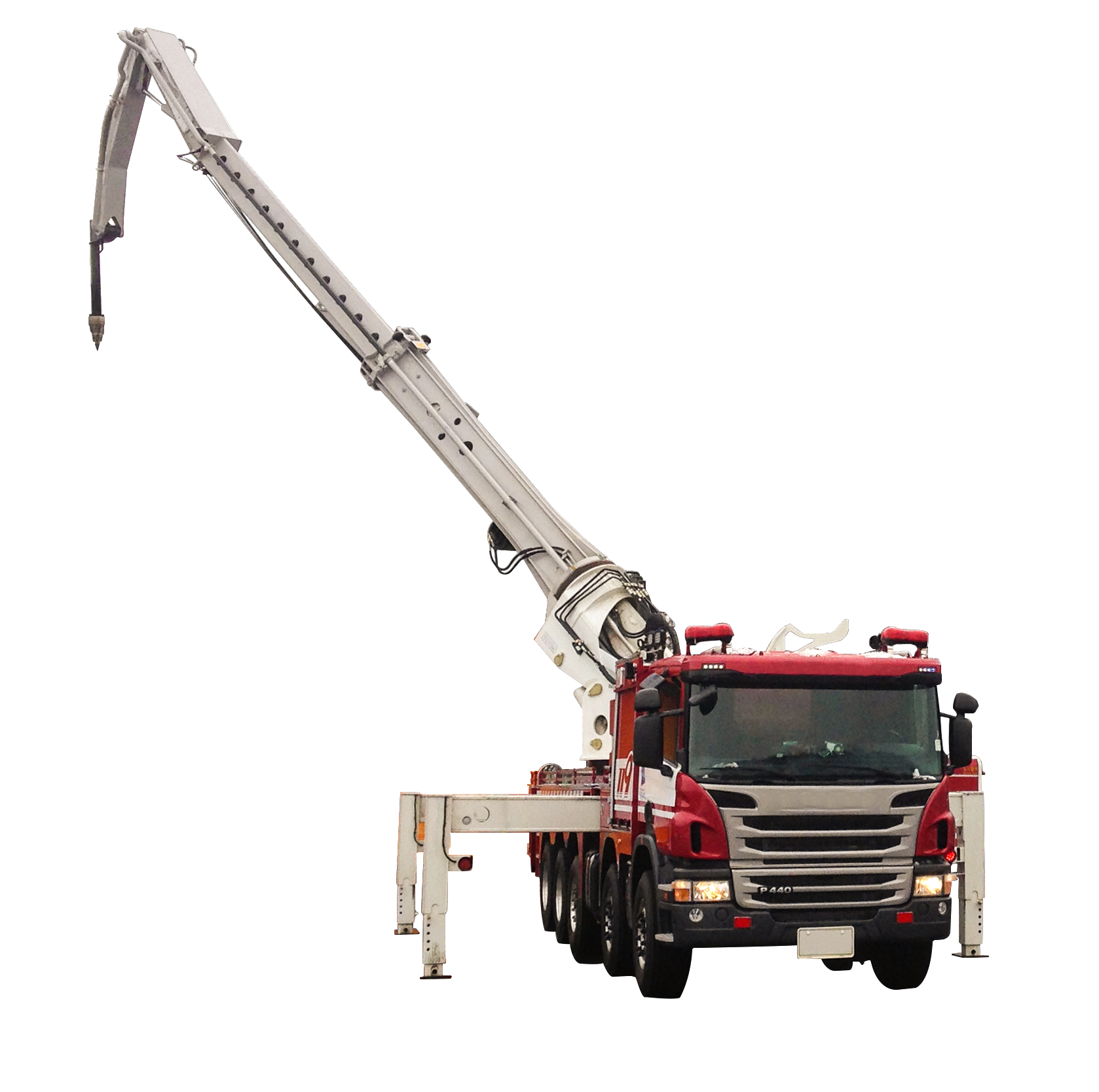

Gradall Industries, Inc., has introduced two emergency response vehicles able to reach through windows and walls or break through roofs to launch a technical assault on dangerous structure fires.

Gradall FA Systems use a rugged telescoping, tilting boom and a patented 5th Man fire head to break through wood, masonry, concrete and other building materials and then drown dangerous fires using water or foam.

The Gradall firefighting units are available with a variety of truck undercarriages, enabling these state-of-the-art units to quickly get to fire sites. Rapid deployment outriggers, also part of the FA System, telescope out and down and can be positioned all at once or independently, providing short jacking capabilities while enhancing stability.

Two reach options are available:
• The FA 70 can reach out 20 meters (70 feet), accessing roofs on six- or seven-story buildings.
• The FA 50 reach is 15 meters (50 feet), attacking fires in buildings up to five stories in height.

Using a wireless remote control device from over 90 meters (300 feet) away, a firefighter can telescope the boom and tilt the stainless steel 5th Man nozzle 220 degrees, directing 52 aqua-jet nozzles to dispense a massive broken stream curtain of water, or Class A or B foam for chemical fires.

To see video of the Gradall FA device in action, or get more information and a demo, visit www.GradallFA.com.

FA 70 SPECIFICATIONS

Weight

47,340lbs (21,473KG)

Two Hydraulic Motors

Swing 20hp(15KW) @ 1.0 rpm; Tilt 20hp(15KW)

Hydraulic System

0 to 42GPM (160L/Min), up to 4000psi

Telescoping Boom

Reach 50feet (15.2m), rotation 220°, Tilt Left or Right

5th Man Water Cannon

1500GPM and 120psi, Class A and Class B Foam

Oil Capacity

55gal (208L)
